Acicular Nodular Cast Iron Roll，with higher strength than pearlite spheroidal graphite cast iron roll, as well as higher wearable resistance.
product presentation
Acicular Bainite Nodular Cast Iron Roll is made of Ni, Mn, Cr, Mo and other alloy, it has acicular structure (Bainite+ some martensite) matrix, with higher strength than pearlite spheroidal graphite cast iron roll, as well as higher wearable resistance. Static casting and centrifuge casting are available.
Product Parameters
Size | Ф200mm≤body diametr≤Ф1200mm | |
Mill stand | Section mills | Finished |
H-shaped mills | ||
Wire & rod mills | Middle Finished ，Finished | |
Strip mills | Finished | |
Chemical Composition
Material | C% | Si% | Mn% | Cr% | Ni% | Mo% |
SGB I | 3.00-3.50 | 1.40-2.40 | 0.20-0.80 | ≤0.50 | 2.30-3.50 | 0.40-1.00 |
SGB II | 3.00-3.50 | 1.20-2.00 | 0.20-0.80 | 0.20-1.00 | 3.00-4.50 | 0.40-1.00 |
Performance and application
Mark | Hardness（HS） | tensile strength（Mpa） | Bending strength（Mpa） | purpose |
SGB I | 55-70 | ≥400 | 600-800 | Finishing rack light profile steel,rod materials and ribbon steel High-speed wrie pre-finishing |
SGB II | 62-80 | ≥400 | 600-800 |
applied range
Bainitic ductile iron rolls are a type of roll material with excellent performance and are widely used in the steel rolling industry.
Size | Ф200mm≤body diametr≤Ф1200mm | |
Mill stand | Section mills | Finished |
H-shaped mills | ||
Wire & rod mills | Middle Finished ，Finished | |
Strip mills | Finished | |
Chemical Composition
Material | C% | Si% | Mn% | Cr% | Ni% | Mo% |
SGB I | 3.00-3.50 | 1.40-2.40 | 0.20-0.80 | ≤0.50 | 2.30-3.50 | 0.40-1.00 |
SGB II | 3.00-3.50 | 1.20-2.00 | 0.20-0.80 | 0.20-1.00 | 3.00-4.50 | 0.40-1.00 |
Performance and application
Mark | Hardness（HS） | tensile strength（Mpa） | Bending strength（Mpa） | purpose |
SGB I | 55-70 | ≥400 | 600-800 | Finishing rack light profile steel,rod materials and ribbon steel High-speed wrie pre-finishing |
SGB II | 62-80 | ≥400 | 600-800 |
applied range
Bainitic ductile iron rolls are a type of roll material with excellent performance and are widely used in the steel rolling industry.

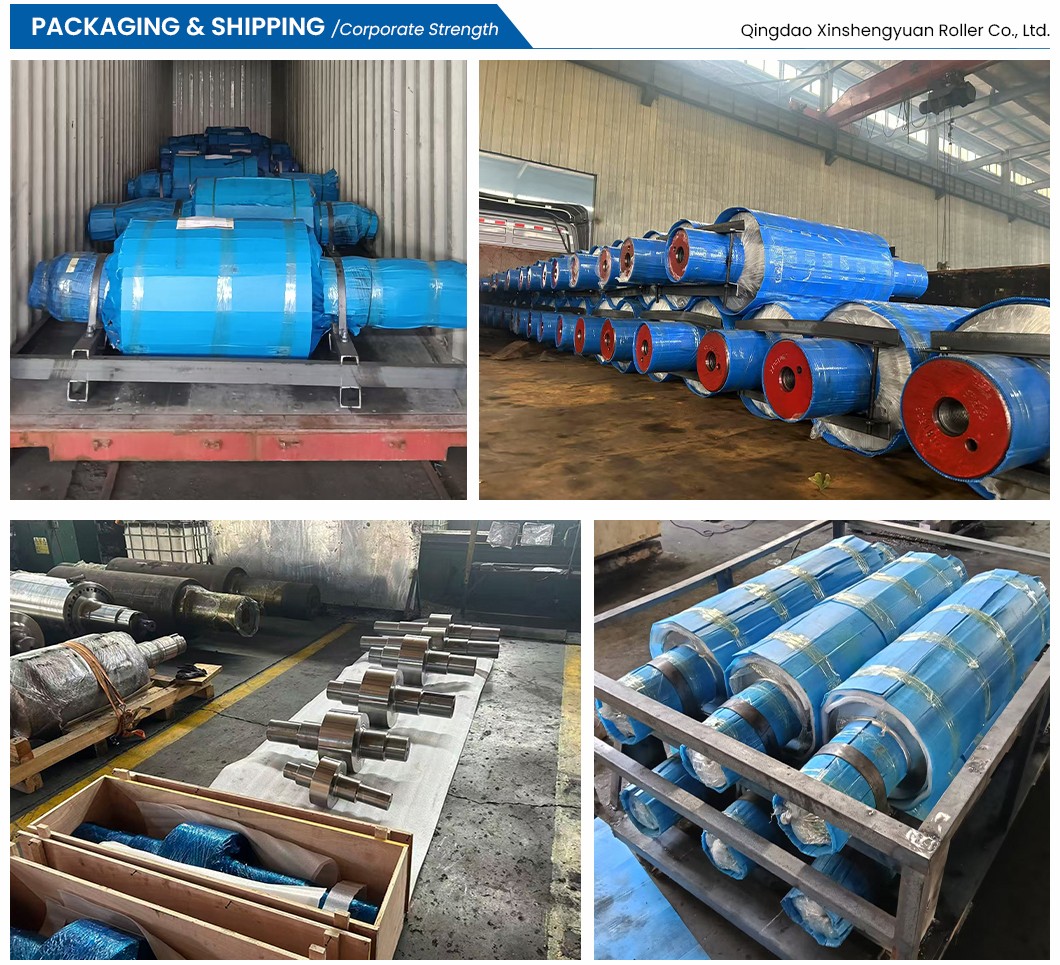

Packing and shipping
Mainly using iron bracket and wooden box packaging.

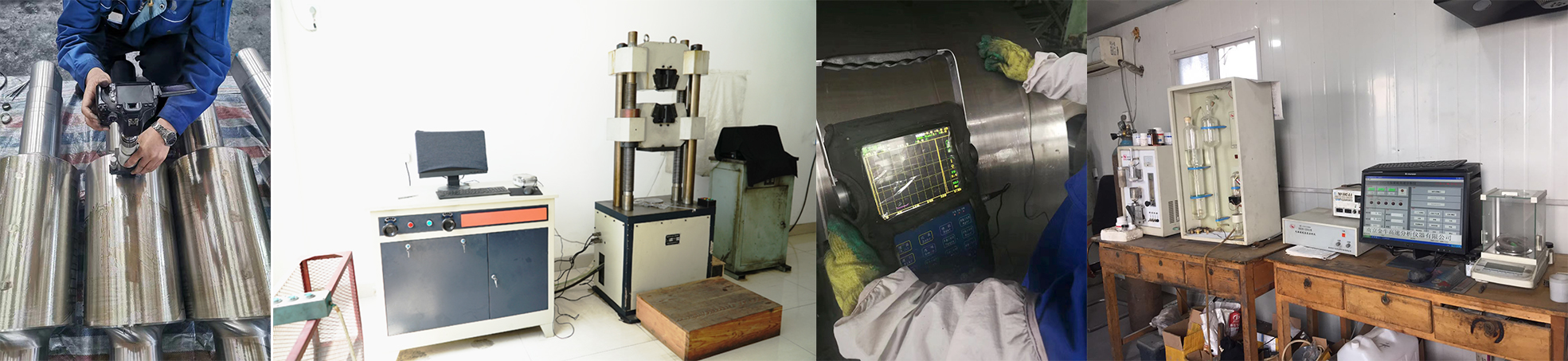

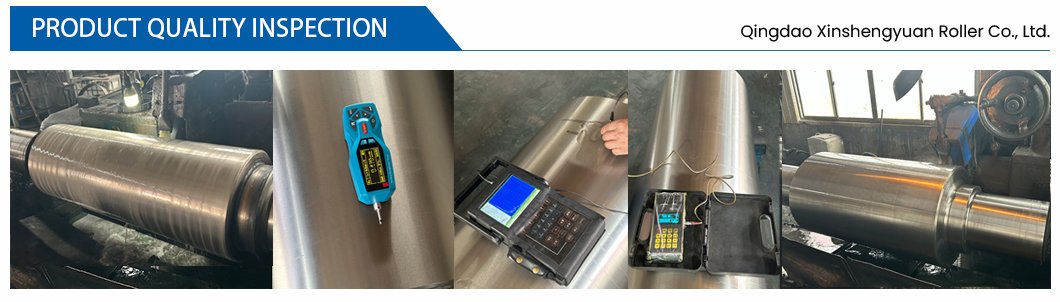

Product Quality Inspection
Our products will be flaw detection, spectrometer, hardness, finish, water pressure test.

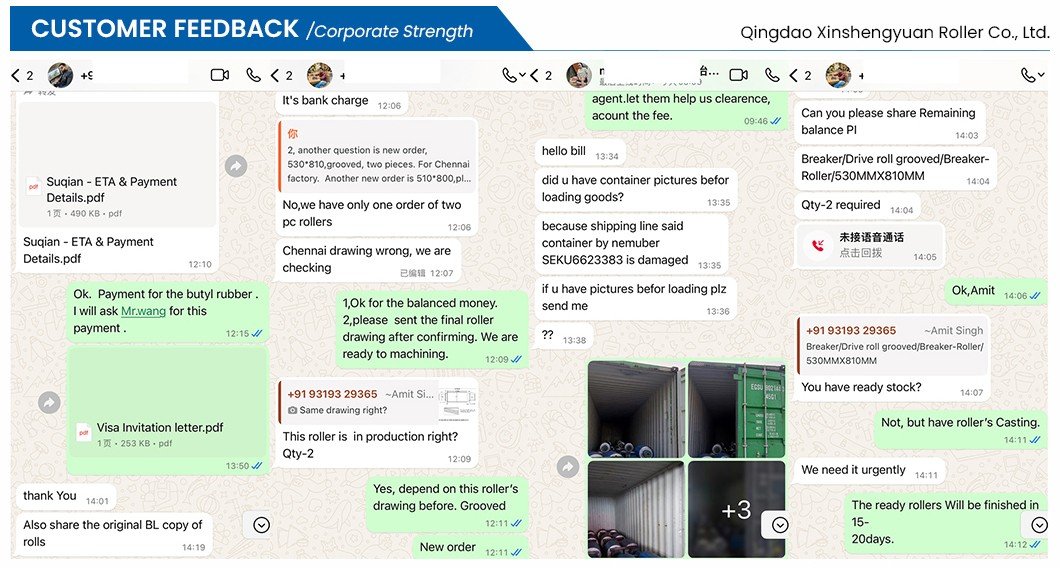

customer feedback
Since establishment , we have been committed to becoming a famous roller supplier , vigorously developed overseas markets, and successively supplied rollers to customers in Philippines, India, Egypt, Russia, South Korea，Vietnam, Turkey and other countries.
client
corporate information
Qingdao XinShengYuan Roller Co.,Ltd has been specialized in producing all kinds of mill rolls and their parts since 2009. Our products are widely used in iron and steel metallurgy mill, rubber mill, grain mill, paper mill and other occasions and fields. Our products are reliable and long-lasting, backed by 15 years of experience. 50% of our products are exported all over the world. By leveraging our hard-earned reputation, honesty, reliability and quality, Qingdao Xinshengyuan Roll Co., Ltd aims to continue as a pioneer in sales. At the same time, we are looking for global partners overseas. If you are an end user, distributor or agent of all types of mill rolls, please contact us. We look forward to working with you in the near future.

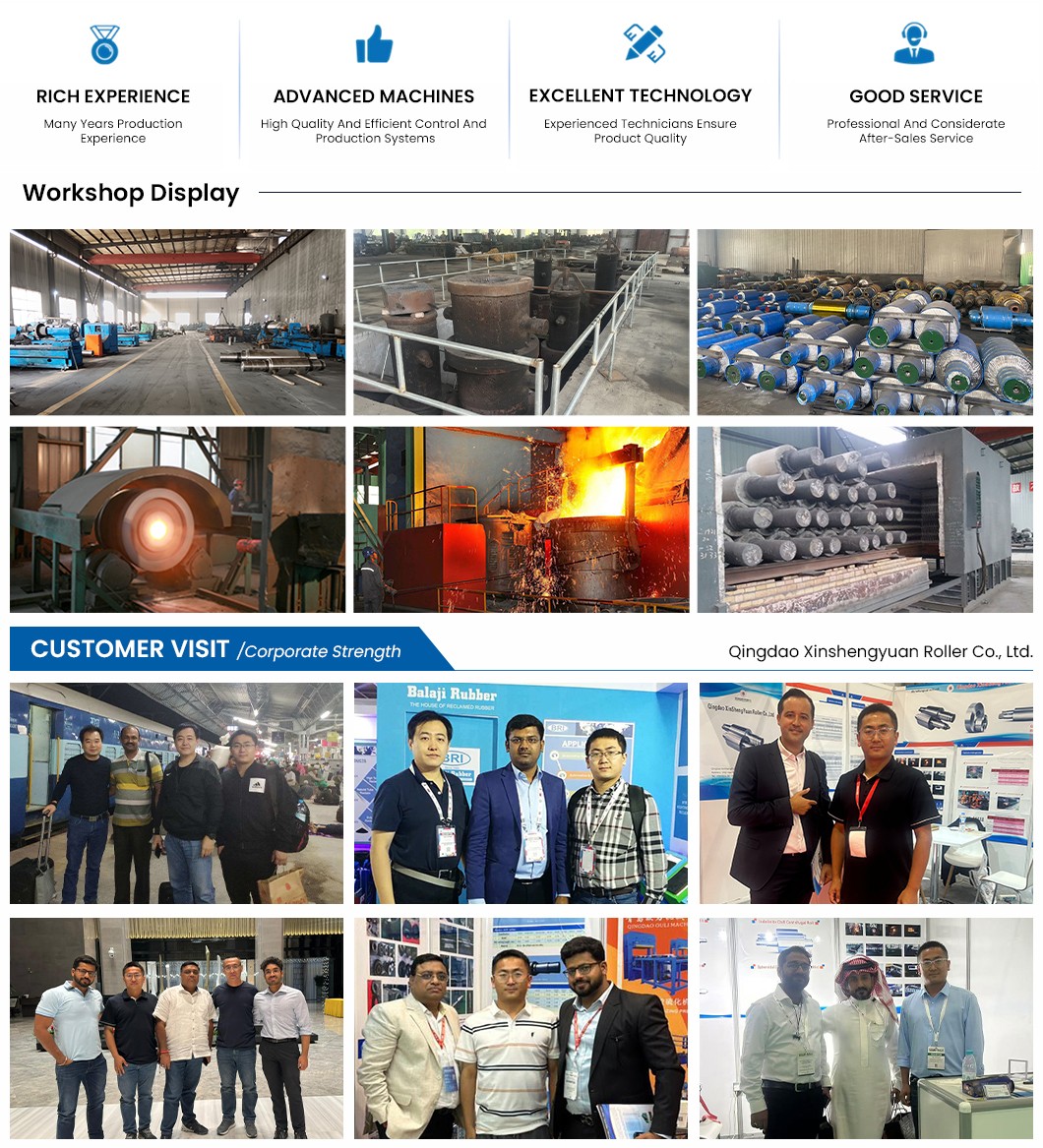

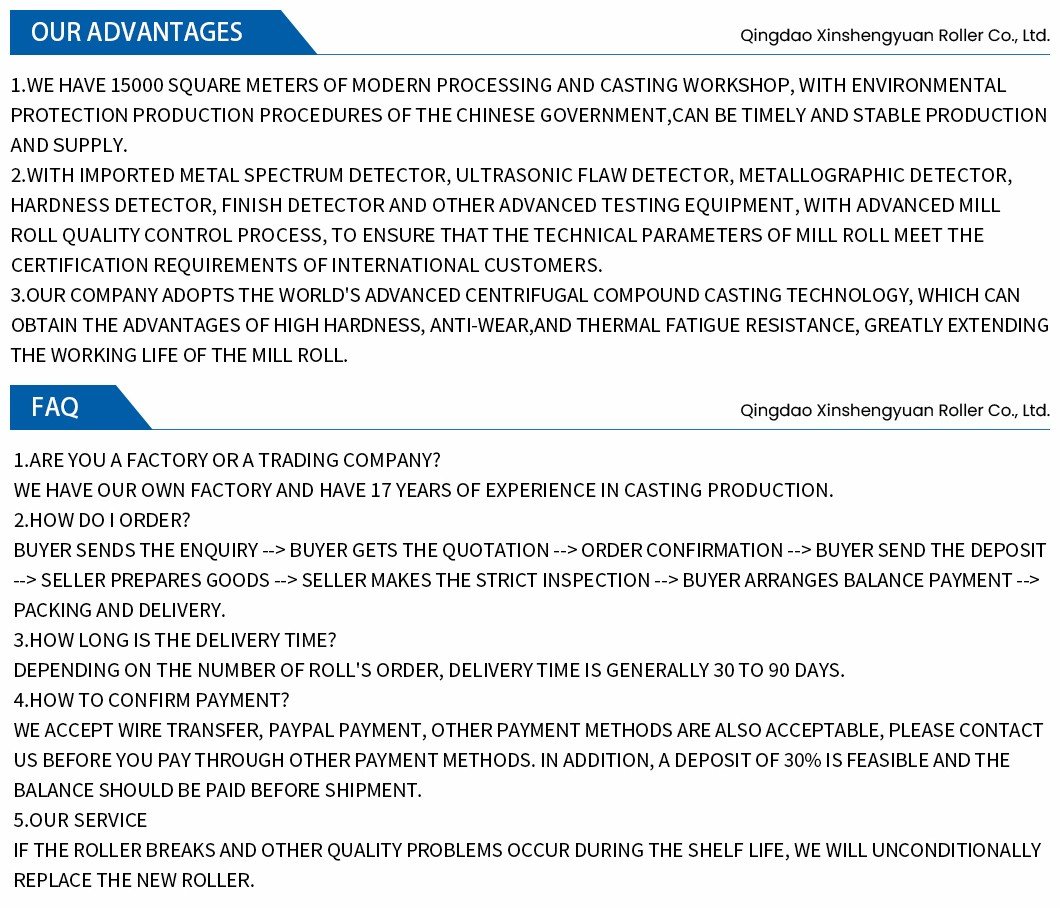

our advantages
1. We have 15000 square meters of modern processing and casting workshop, with environmental protection production procedures of the Chinese government,can be timely and stable production and supply.
2.With imported metal spectrum detector, ultrasonic flaw detector, metallographic detector, hardness detector, finish detector and other advanced testing equipment, with advanced mill roll quality control process, to ensure that the technical parameters of mill roll meet the certification requirements of international customers.
3.Our company adopts the world's advanced centrifugal compound casting technology, which can obtain the advantages of high hardness, anti-wear,and thermal fatigue resistance, greatly extending the working life of the mill roll.
FAQ
1.Are you a factory or a trading company?
Factory.
2.How do i order?
Buyer sends the enquiry --> Buyer gets the quotation --> Order confirmation --> Buyer send the deposit --> Seller prepares goods --> Seller makes the strict inspection --> Buyer Arranges Balance Payment --> packing and delivery.
3.How long is the delivery time?
Depending on the number of roll's order, delivery time is generally 30 to 90 days.
4.How to confirm payment?
We accept wire transfer, paypal payment, other payment methods are also acceptable, please contact us before you pay through other payment methods. In addition, a deposit of 30% is feasible and the balance should be paid before shipment.
5.Our Service
If the roller breaks and other quality problems occur during the shelf life, we will unconditionally replace the new roller.
